Home > TYPE C Connector > OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR
  • OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR
1/1
  • OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR

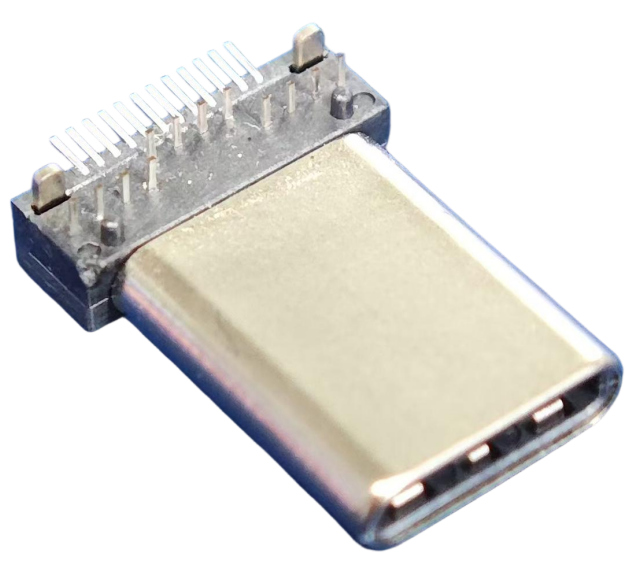

OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR

SKU:
  • Maximum transmission rate up to 40Gbps
  • Patented exclusive terminal arrangement design
  • Extrusion out-shell
  • Injection molding process
  • No rear cap, ensures stable terminal GAP height
  • Materials fully comply with RoHS 2.0 + HF environmental requirements
0.0 (0 Reviews)
0 Sold
$0.30 $0.25
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR
  • OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR
1/1
  • OTG-24PIN TYPE C PLUG R/A SMT+DIP TYPE CONNECTOR
  • Description
  • Rated Current: 5A Max.
  • Rated Voltage: 30V Max.
  • Contact Resistance: 40mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Insertion Force: 5~20N
  • Withdrawal Force: 8~20N (Before Durability Test), 6~20N (After Durability Test)
  • Durability Life: 10,000 Cycles
  • Operating Temperature: -40~+85℃
  • Packaging Method: Tape Reel + Vacuum Packaging
  • Plating Type: Contact Area: Gold Plated; Solder Area: Gold Plated / Tin Plated Optional
  • Environmental Compliance: RoHS 2.0, HF, REACH
